ILUMINAR LED - iL5x 440W & iL5xc 330W - 5-Bar LEDs (Early Veg & Veg Growth)

Save 5%
$920.00
$874.00
SKU IL-5x26FSG-120

The iL5x and iL5xc LED horticultural lights from ILUMINAR Lighting deliver a tuned, full spectrum to your plants when a lower μmol output is needed. Low heat output and low energy costs make these LED horticultural lights the ultimate choice for starters and seedlings.

LED HORTICULTURAL LIGHT FOR PRE-VEG & VEG

The iL5x and iL5xc LED horticultural lights were engineered for early growth stages that require lower μmols. Delivering excellent uniformity over a shared 5x5 space and pure growing power with up to 1100 μmol/s in the iL5x model. These LED fixtures can be used in a variety of environments - mounted in a rack for tiered indoor gardens or hung as a stand-alone fixture.

Both models have a quick and easy installation and the ability to daisy chain several fixtures in a row.

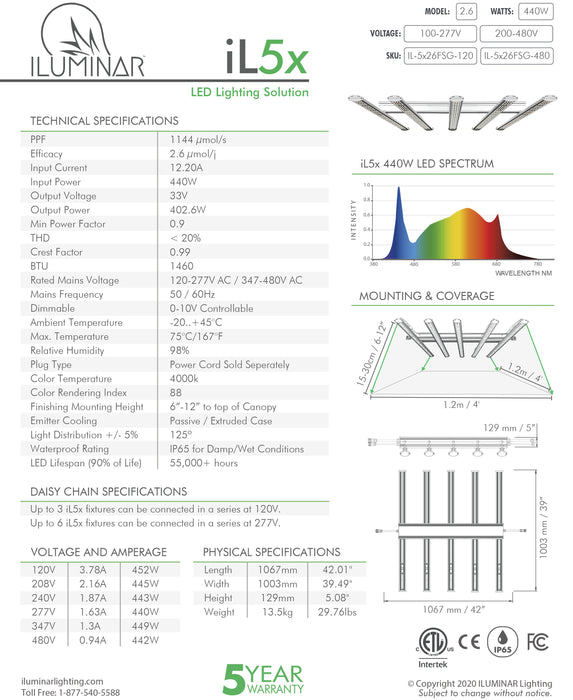

iL5x -440W LED Light

The iL5x 440W LED is a perfect mid-range wattage, full cycle LED for vegetation and can also be used to flower.

iL5x TECHNICAL SPECS

  • ​ PPF: 1144 μmol/s
  • Efficacy: 6 μmol/j
  • Input Power: 440 Watts
  • Lbs: 29.76 lbs / 13.5 kg
iL5x 440W SPEC SHEET
iL5x 440W USER MANUAL

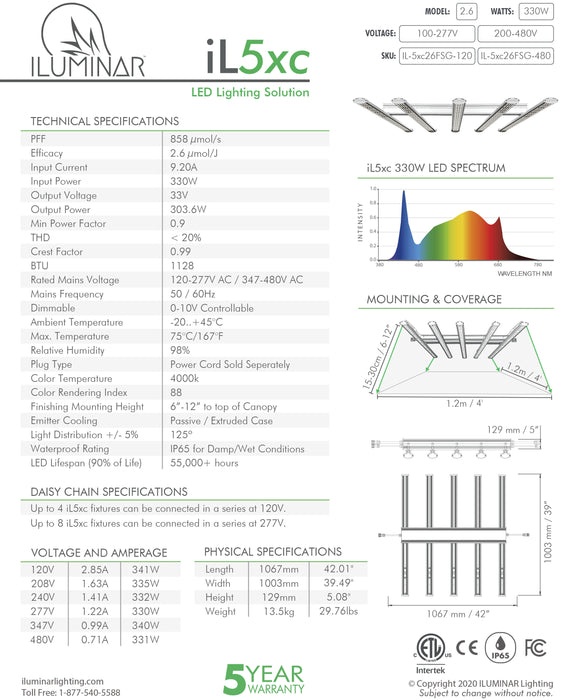

iL5xc -330W LED Light

The iL5xc is primarily engineered for seedling and vegetative growth phases.

iL5xc TECHNICAL SPECS

  • PPF: 858 μmol/s
  • Efficacy: 6 μmol/j
  • Input Power: 330 Watts
  • Lbs: 29.76 lbs / 13.5 kg

iL5xc 330W SPEC SHEET
iL5xc 330W USER MANUAL

FEATURES

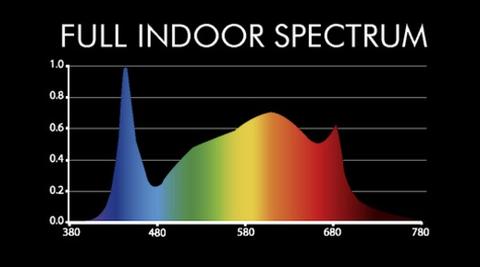

  • Indoor Tuned Full Sun Spectrum
  • High Efficiency SMD LED ArrayHigh
  • Low Profile
  • ETL Certified
  • High Uniformity > 90%
  • Low Heat Coefficient
  • 24/7 Customer Support

iL5x & iL5xc SPECIFICATIONS

  • Emitter Type: Osram SMD LED Diodes (various spectra available)
  • Spectrum Tuned: Indoor Full Sun / Customized Spectrum ​
  • Rated Mains Voltage: 120V-277V, 347V-480V
  • Dimming / 0-10V Controllable
  • Mounting Height: 6”-12” to top of Canopy
  • Emitter Cooling: Passive / Extruded Case
  • Waterproof Rating: IP65 for Damp Locations
  • LED Lifespan (90% of Life): 55,000+ Operational Hours
  • Light Distribution +/- 5%: 125º
  • Power Factor: > 90%

PHYSICAL SPECS

  • Height: 5 in / 129mm
  • Width: 39 in / 1003mm
  • Length: 42 in / 1067mm
