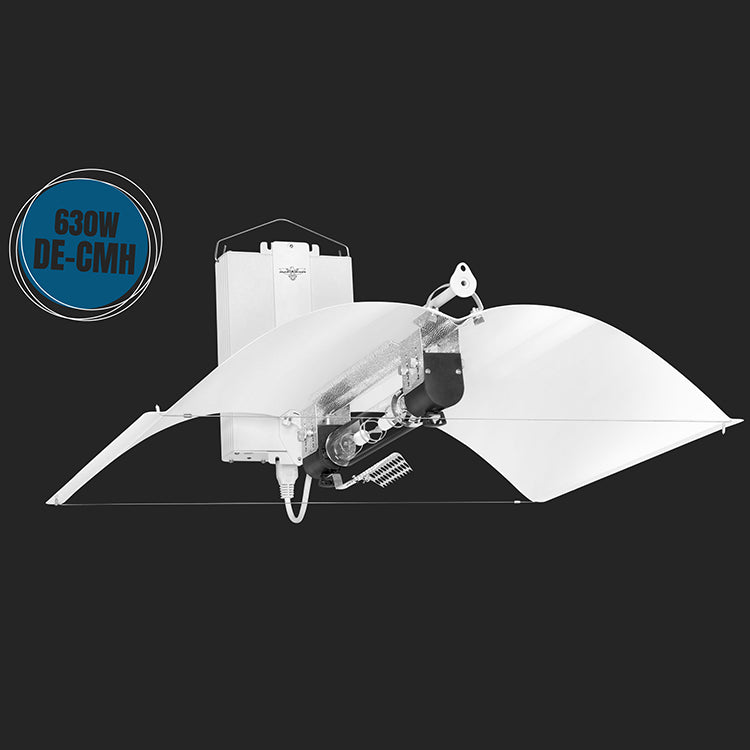

Adjustawings Hellion 630 W DE-CMH Advanced Lighting Kit 240V
Adjustawings Hellion 630 W DE-CMH Advanced Lighting Kit is unique in the industry, as the 630 W Double Ended Ceramic Metal Halide lighting system provides high intensity, blue-rich light—ideal for powering vigorous vegetative growth, full lifecycle, flowering or mixed spectrum applications.
Please read the Adjustawings Return Policy! We follow their return policy and refer all customers to them in the instance of a return. Click here for more info.
Get ready for the industry’s most advanced and efficient CMH lighting systems!
The secret is engineering our own lamp, e-ballast, reflector and Super Spreader to work together as a complete lighting system (rather than forcing growers to mix and match components from various manufacturers). The result is unmatched output and efficiency in its class.
Our new CMH lighting systems (630W DE-CMH and 315W SE-CMH) deliver an improved, continuous spectrum compared with first generation CMH lamps. Additionally, growers can benefit from higher output, improved efficiency and longer lamp life. The years of research, dedication and grow trials have paid off!
Lamps are available in 3K and 4K colours. The 4Ks (additional blue) are ideal for all stages of plant growth and can be used to enhance the spectrum of HPS or DE-HPS throughout flowering. The 3Ks are great standalone lamps, ideal for all stages of growth and particularly flowering.
The Adjust-A-Wings DEfender reflector uses composite, highly reflective materials (PVD aluminium and a high-tech Titanium Oxide reflector coating) to provide a super-accurate and uniform lighting footprint.
Get ready for industry-leading performance and efficiency from our new Ceramic Metal Halide (CMH) lighting systems!

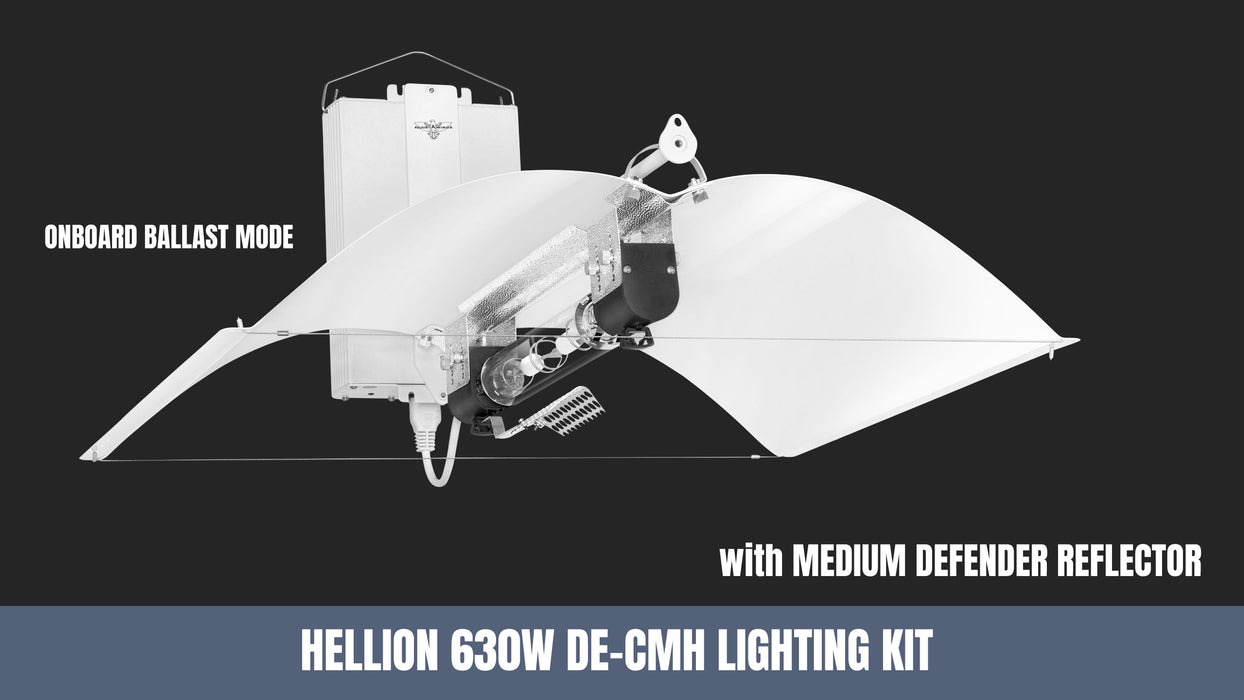

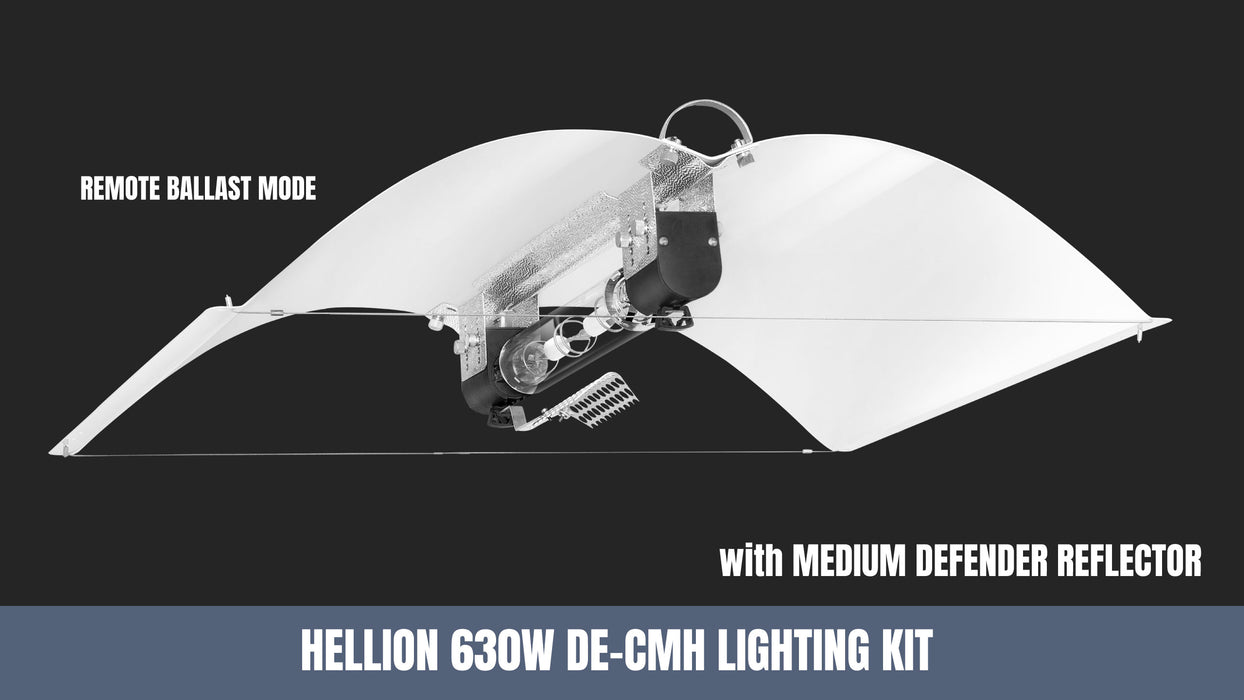

Hellion 630W DE-CMH Lighting Kit
High intensity light with an unbeatable spectrum, ideal for all stages of growth, particularly flowering. They excel when used in chequerboard formation with Hellion DE-HPS to create an insanely productive mixed spectrum lighting plan. With wings set wide they easily cover 1.5m x 1.0m for flowering or 1.8m x 1.2m for early veg / mother plant production. With wings adjusted to narrow settings, square canopies in the range of 1.2m x 1.2m (flowering) to 1.5m x1.5m (veg/mother) can also be covered.
This state-of-the-art DE-CMH lighting kit offers unmatched efficiency, uniformity, light spread, spectral quality and cooler operating temperatures.
Key grower benefits include: closer placement, deeper canopy penetration, explosive growth, shorter internodal length and increased production of essential oils and terpenes.
Unlock The Power of Deep Spectral Mixing
Professional growers are already aware of the increase in crop quality made possible through mixing the spectrums of HPS and CMH lamps. However the greenhouse-style fixtures that they commonly use require high placement above the canopy which reduces radiant intensity (as opposed to overall intensity measured on a PAR meter) and limits yield.
By combining DE-HPS with DE-CMH and using Adjust-A-Wings plus Super Spreaders, growers can mix spectrums and maintain high radiant intensity, fully unlocking the “Emerson Effect” to drive production (whole plant) for improved yields of quality, terpene-rich produce.
What’s in the box?
- Medium DEfender Adjust-A-Wings Reflector

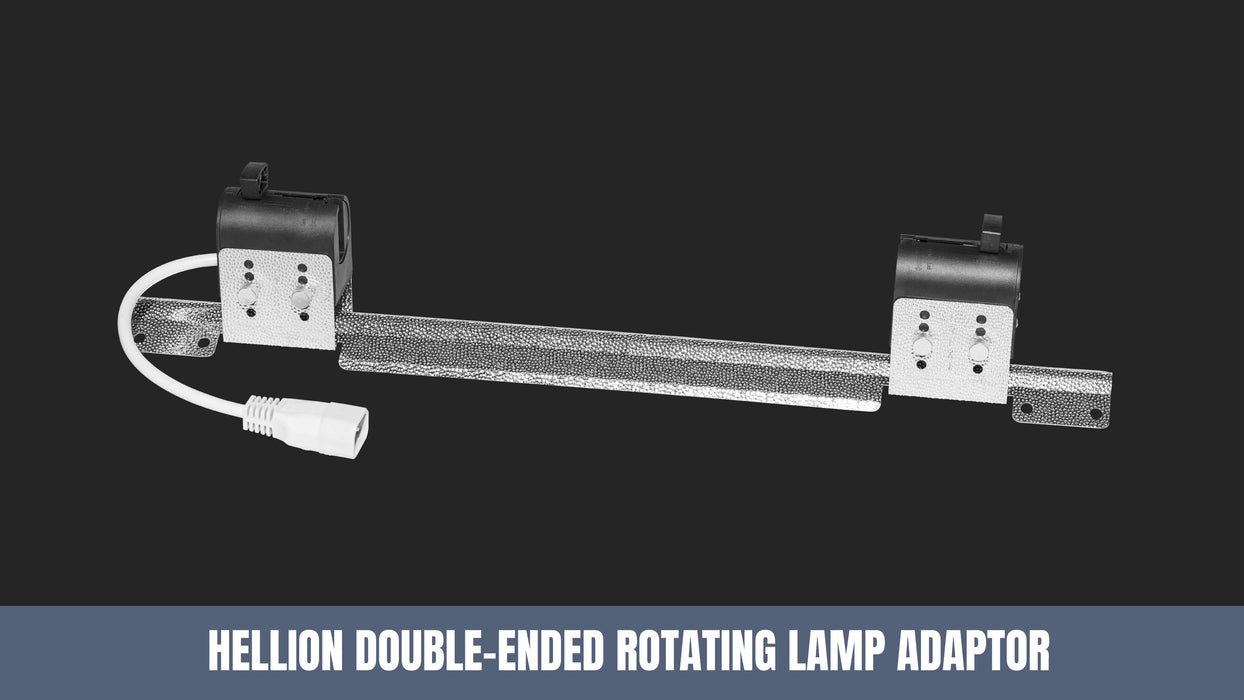

- HELLION DE Rotating Lamp Holder (Adjustable)

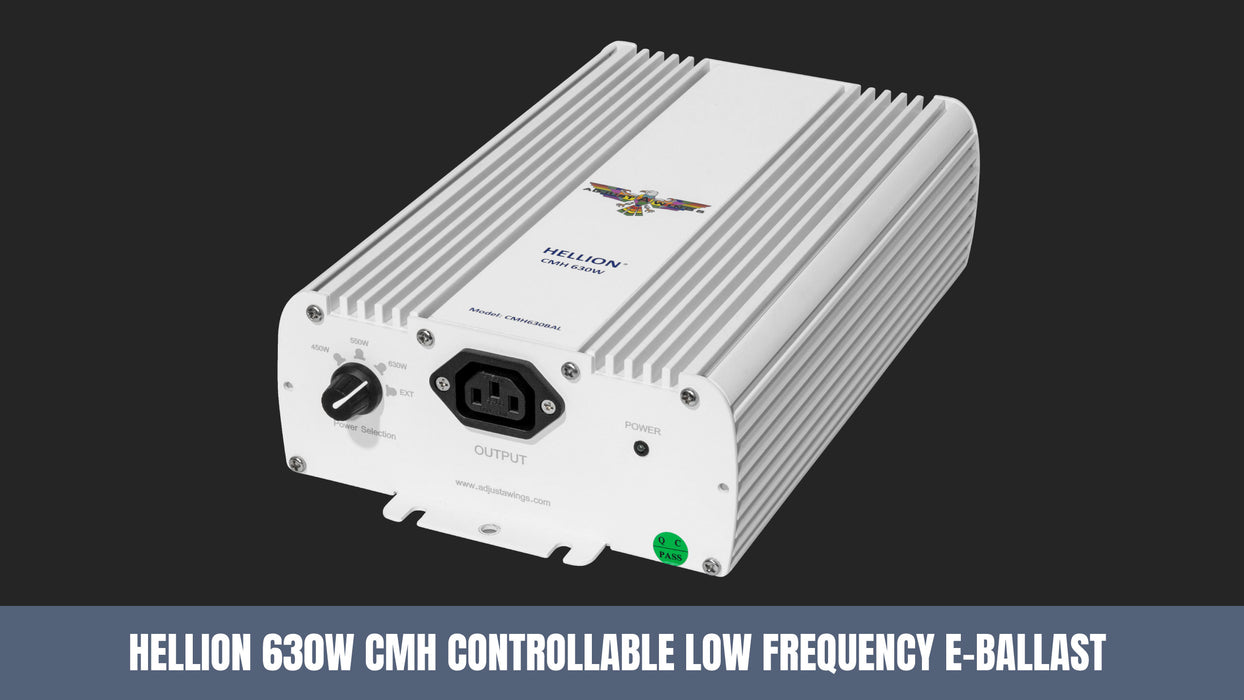

- HELLION Controllable Low Frequency Square Wave Electronic Ballast (0-10V controller ports)

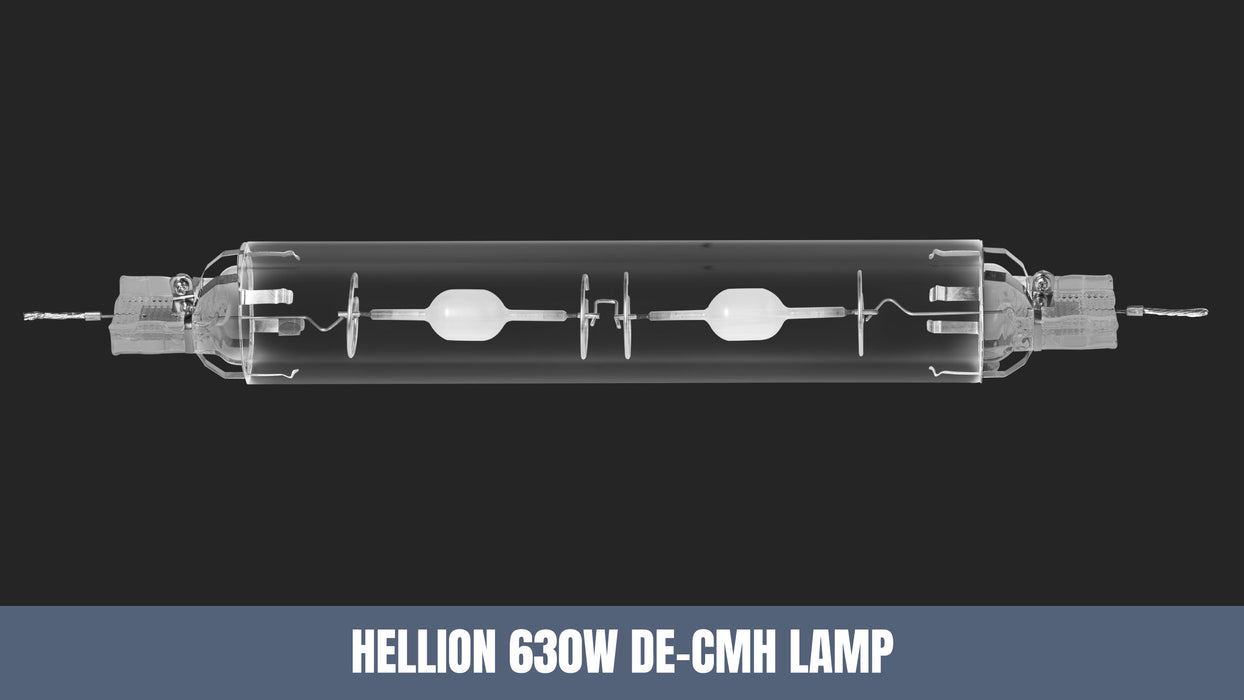

- HELLION 630W DE-CMH 3K Lamp

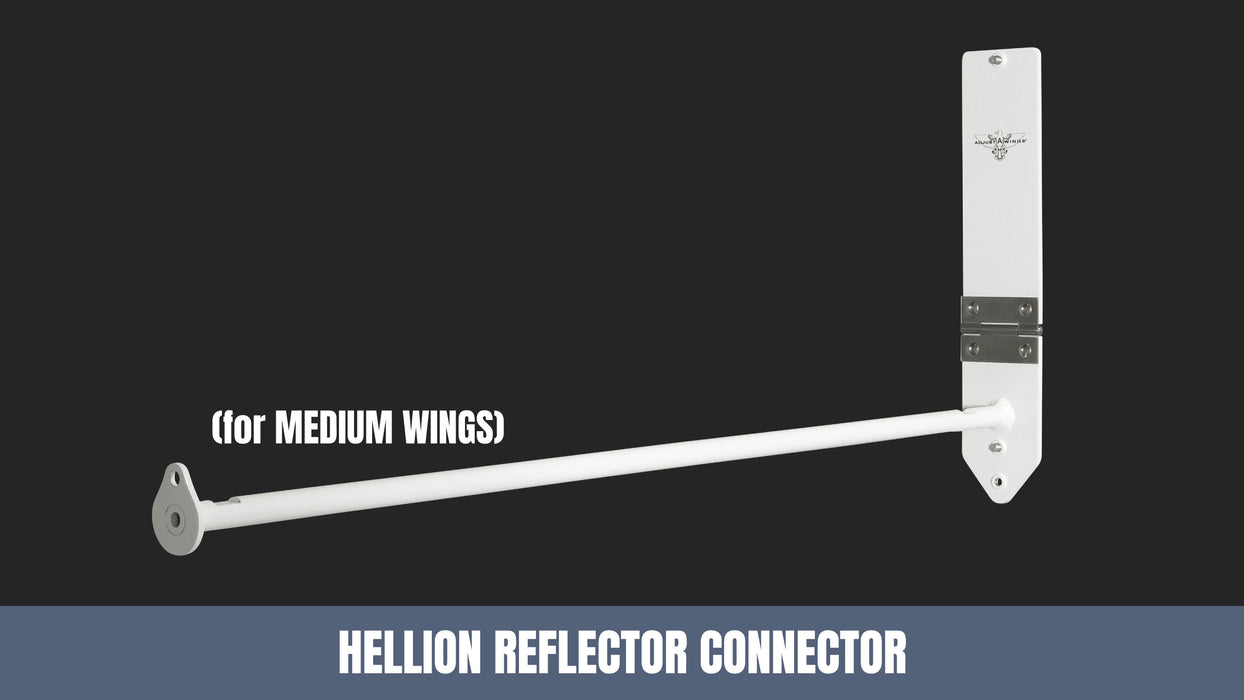

- HELLION Reflector Connector

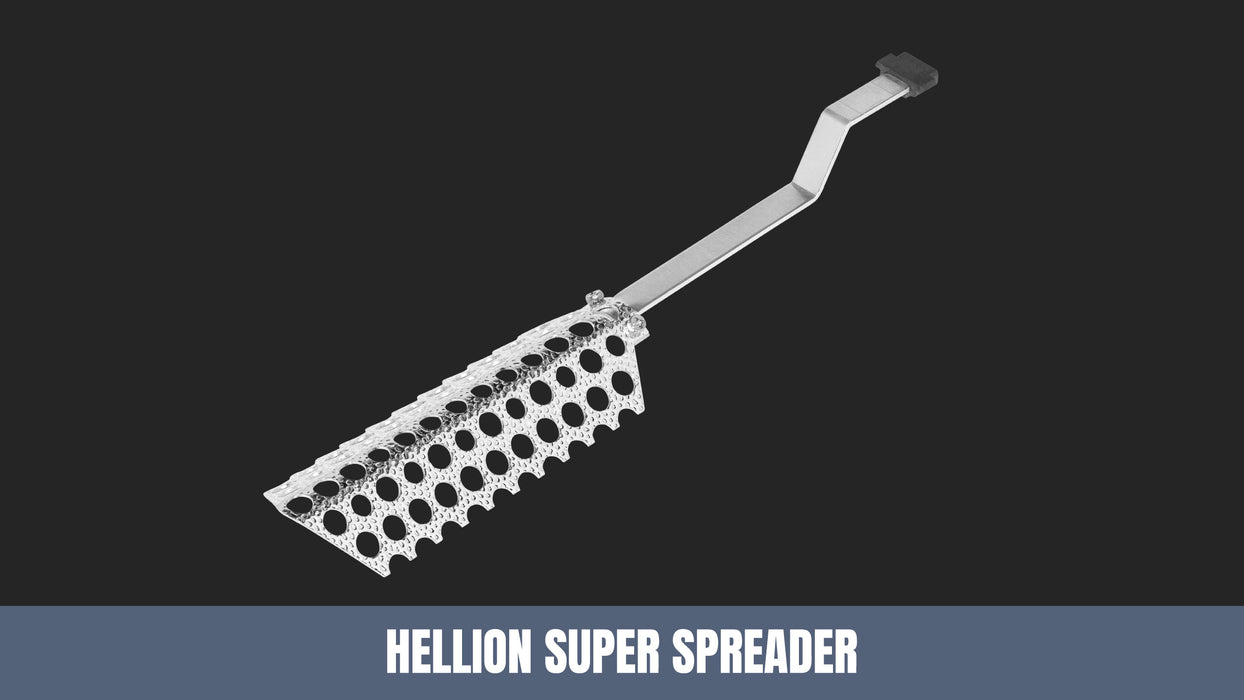

- Super Spreader
- 2.5m Input Power Cord
- 3.5m extension cord for remote placement of e-ballast or extension of input power cord length when run with ballast on-board
- Assembly Instructions
Hellion 630W DE-CMH 3K Spectral Chart
3100K – CRI: 87.4
PPF 1201 µmol – 1.91 µm/W
UNLOCK TOP SHELF QUALITY
Hellion Lighting Kits by Adjust-A-Wings deliver more PAR output than any other 600 – 750W DE-HPS, 630W DE-CMH or 315W SE-CMH. However, it’s Adjust-A-Wings’ unique capability of getting “up close and personal” that truly sets it apart from the pack, delivering unparalleled intensity and canopy penetration without causing heat stress.
Combining our DE-HPS and SE-CMH / DE-CMH systems in the same lighting plan, growers can create “deep spectral mixing” — combing the complementary spectrums of DE-HPS and CMH at high radiant intensity. This stimulates photosynthesis, production and crop quality on a whole new level!
Thanks to the double-parabolic reflector shape and patented Super Spreader (heat diffuser) Hellion lighting systems are able to be safely positioned much closer to the canopy, giving much deeper penetration and driving production throughout the plant. Other small “deep-dish” greenhouse-style reflectors require 90cm or more which exponentially decreases both incident and angular intensity. The Hellion is ideal for quality + production focused growers cultivating under standard-height ceilings.
Also, growers with high ceilings my benefit from growing in a multi-tier (multi-layer) arrangement which is not possible with other DE HID systems. Watch the video.
POWER and PERFORMANCE
All the components (reflector, lamp, e-ballast and Super Spreader) have been designed from the ground up to work as a complete, unified lighting system. The result is an extremely efficient grow light with extended lamp life, lower power consumption, higher output and high spectral integrity across all key wattage settings.
The PVD-aluminium Super Spreader + Spine (insert above the lamp) coupled with the DEfender titanium-coated reflector work perfectly in concert to spread the intense output from the DE lamps evenly and accurately to promote strong, vigorous and uniform plant development.
HEAT MANAGEMENT AND CANOPY PENETRATION
Proximity is everything when lighting plants indoors, otherwise incident light intensity is weak and diffuse, incapable of driving growth and bloom beyond the canopy. Adjust-A-Wings reflectors were designed for grow rooms, not greenhouses. They spread the light and radiant emissions uniformly while the Super Spreaders mitigate the risk of hot spots directly beneath the lamp, allowing a much closer hanging distance. The result is a much more powerful and intense light on your plants, without the heat issues.
The Hellions run cooler than any other comparable DE system and maintain cooler and more consistent plant temperatures for better health, and growth rates leading to more homogenous maturity, higher quality and bigger yields.
QUALITY AND RELIABILITY
Reflector, lamp and e-ballast are all custom designed and built to highest quality standards.
Performance variation is consistently < 1%. All ballasts and lamps are factory run-in so no “100-hour burn in time” is required. PAR maintenance (working life) of lamps is extended thanks to custom-made Japanese arc tube and cooler running temperatures (18 – 24 months). Adjust-A-Wings reflectors last three to five times longer than small, deep-dish style reflectors.
GUARANTEE
Lamp:
1 year/5000hr
Electronic ballast:
3 years
(Ballasts are also custom designed and built to match arc tubes—three years in development)
Reflector (Wings):
3 years
(Springy & super tuff H18 aluminium powder coated with 92% reflective titanium white)
Reflector (Spine + Super spreader):
3 years
(Super reflective TRV-3 PVD-aluminium 97% reflective, including Magnesium Fluoride layer instead of Silica Dioxide layer for much enhanced UV reflection)
